Description

You are suggested to watch the video below for a further knowledge on this Metallized film flat spout pouch intended for 400 grams soybean sauce.

Introduce

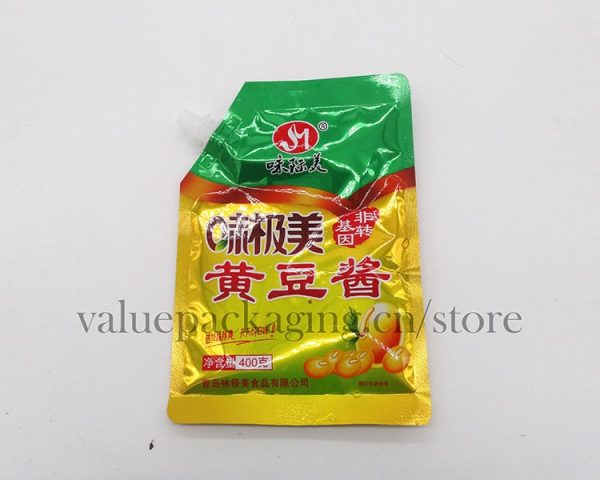

This amiable flat bag is made of PET12/VMPET12/LEDPE foil material.This is a flat spout bag well intended for soybean sauce 400grams, which is quite popular in the consumer market for chef. The main body is set in green and yellow colors, which attracts so attractive the chef customers and young people. We are supplying this bag to our customer in a quantity of 3 million per month.

Here we are going give a further explanation on this amazing eco-friendly  package, and hope it helps you to make a decision about your perfect packaging.

Foil Structure



This foil materials is a reinforcedstructure with excellent properties for soybean sauce packages. The foil structure is PET12/VMPET12/LDPE, with graphic as below.

PET12, is one of the most common used printing substrates in flexible packaging pouches. With great clarity, stable mechanical strength and excellent printability, it is able to present the customer artwork print in great quality.

VMPET12, means vacuum metallized polyester film with thickness 12 microns (equals to 0.48 gauge), is the most common used aluminum metallized films in flexible packaging field. It is with high barrier performance against mositure vapor and oxygen. The barrier performance will enable your jelly products well protected from the roaster warehouse to the consumer’s hand in a fine way.

LDPE film, means low density polyethylene film, which is the most used inner sealing layer for the soybean sauce bag. It is able to provide enough sealing strength and airtight property for the final packages.

The final thickness for this foil laminate should be 120 microns, with tolerance +-5%. and the toughness of this foil will be enough to finalize good package profile for 180 grams of soybean sauce products.

Flat Spout Pouch Properties

1 Great print quality

The artwork is achieved in gravure printing which can print up to maximum 10 colors. With advanced print techniques and print defects inspection system, we are now outputing fantastic print effect against the customers’ artwork.

Besides, this magic artwork is reversely printed on the inner side of PET film and then laminated to VMPET, which can keep the original colors of the customer artwork in vivid effect.

2 Barrier Performance

The barrier performance of Metallized Film should be taken as the better the flexible packaging substrate films. When Metallized Film is trapped in this foil laminate, actually, the barrier performance is good enough to keep soybean sauce  product in a fine protection.

3 High Mechanical Strength



This reinforced laminated foil is achieved with great mechanical strength, with some standard items as below.

• Tensile Strength
• Sealing Strength
• Anti-puncture Strength
• Burst Impact Strength
• Anti-pressure Property

The above tests are performed against each order, upon customer requirements, and you may check the exact values of this foil material in the Technical Date Sheet part of this post.

In our daily QC work, there is an more easy and reliable method to check if the bag strength is enough to meet the various conditions in the operations of filling, transport, loading and unloading, distribution. We perform drop test against each order, of course, the standard for this drop test should be decided against customer needs.

Here, we are going to fill 150 grams of spicy sauce into this Metallized Film pouch, and perform drops for 3 times, and check if there is any breakage for the bag.

You are advised to watch the video below.

You can judge from the video, the package stays well after 3 drops, really great physical strength.

Package Dimension and Filled Level

400 grams soybean sauce flat spout pouch Dieline

400gr W150XH220 soybean sauce bag 12mm ID



The artwork design template should be helpful when you plan to print your logo and eye-catching artwork on this soybean sauce bag, and you may just download it and send it to your design to fill the creative artwork. You are advised to feedback to us with Illustrator or PDF file with high quality (>= 300PPI)

Technical Data Sheet of 400 grams flat spout pouch

This is the technical data sheet with our laboratory tests on the finished foil for soybean sauce, the values are reliable and ensure it running well on your machine.



Some main items are listed as below.

1. Dimension Tolerance
2. Print Appearance
3. Yield (grams per square meter)
4. Tensile Strength (Mpa)
5. Elongation Rate  (%)
6. Coefficient of friction, short as COF
7. Solvents Left (mg/m2 )
8. Sealing Strength (N/15mm)
9. Sealing Conditions
10. Bond Strength (N/15mm)
11. Burst Impact Strength (J)
12. Anti-Puncture ability (N)
13. Drop Test Ablity (cm)
14. Anti-pressure ability (kgs)
15. Water Vapor Transmission Rate (g/m2/24hr)
16. Oxygen Transmission Rate (cc/m2/24hr)

You are welcome to reach us if you have any questions regarding the test or you need further test against any items.



About the manufacturer

Qingdao Tongli Packaging Products Co., Ltd is a professional and reliable flexible converter and package print service supplier located in Qingdao, China more than 10 years, with competitive engagement in household cleaning chemicals, coffee packages, spout doypack package, dry nuts packages, pet food packages and human food applications.

We are now working with our customers in a long-term partnership around the world. You may just rely on us if you would like to get sustainable and reliable supply for your expect packages.
